SPECIFICATIONS

Brand Name: BIGTREETECH

Choice: yes

DCDC 5V Maximum Output Current: 1A

Driver Working Mode: UART

Expansion Interfaces: EndStop, I2C, Probe, RGB, PT100/PT1000, USB Interface, CAN Interface

External Dimensions: 40mm x 40mm

Fan Interfaces: Two CNC Fans (FAN0, FAN1)

Heating Interface: Heating Rod (E0)

High-concerned chemical: None

Input Voltage: DC12V-DC24V 9A

Installation Dimensions: Hole spacing 31mm x 31mm, M3 screw hole x 4

Item Type: Joining Plate

Logic Voltage: DC 3.3V

Maximum Output Current of Fan Interface: 1A, peak value 1.5A

Microprocessor: ARM Cortex-M0 STM32F072C8T6 48MHz

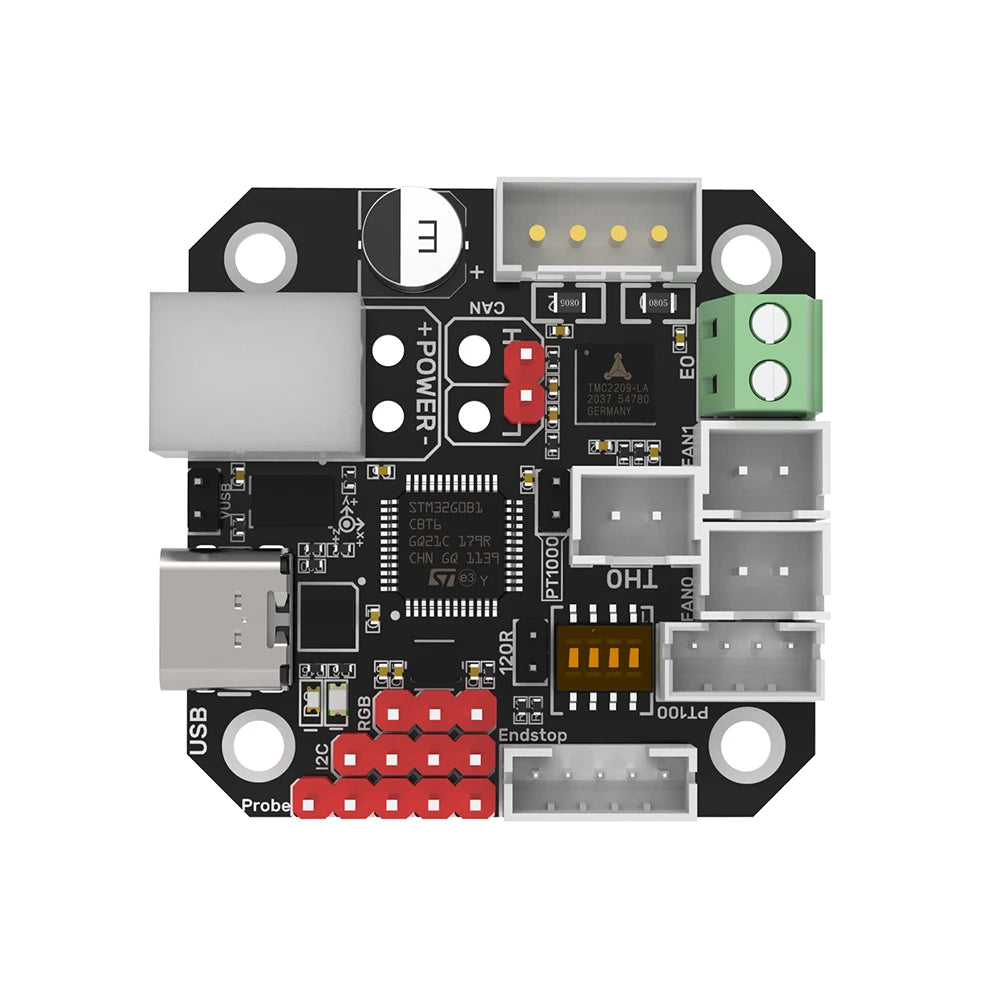

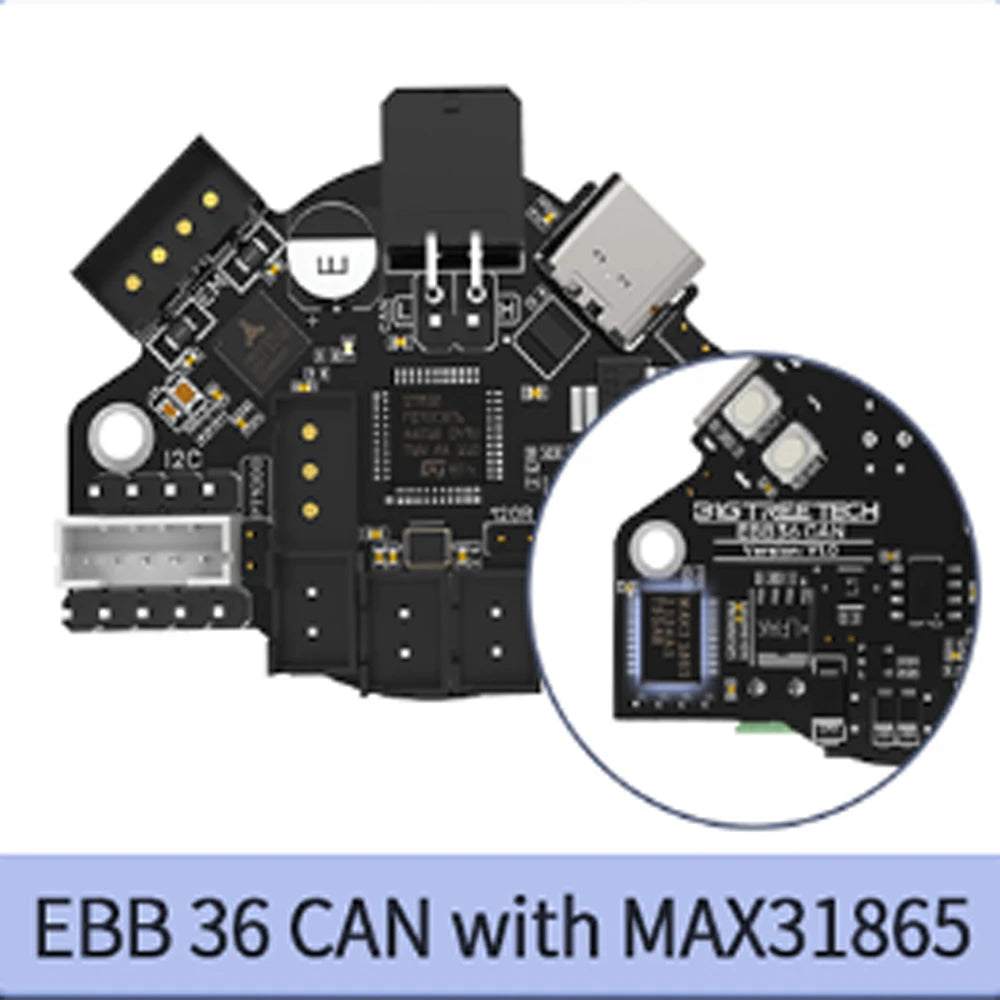

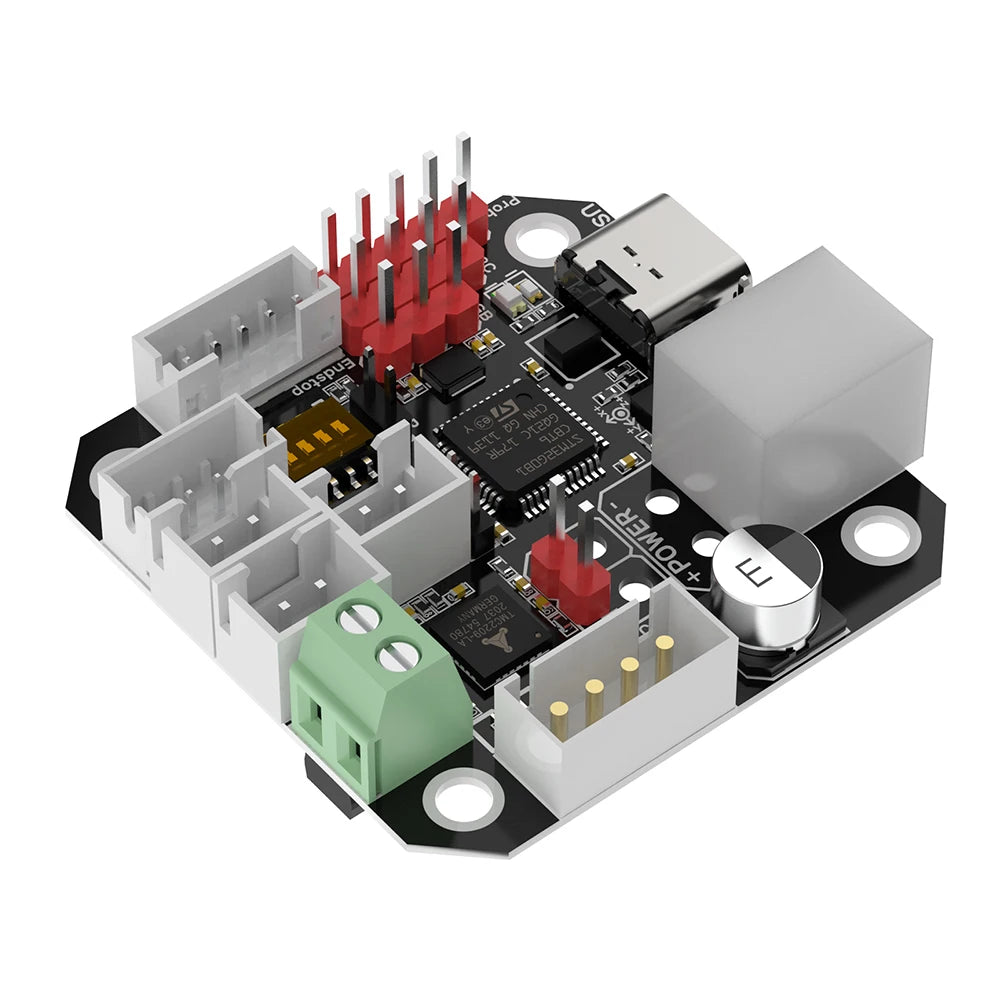

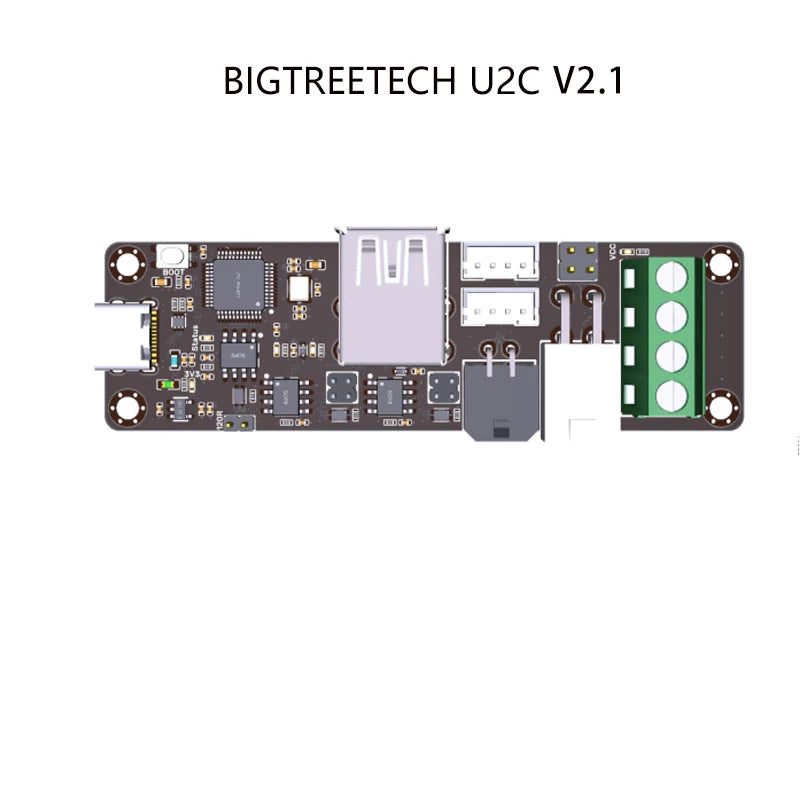

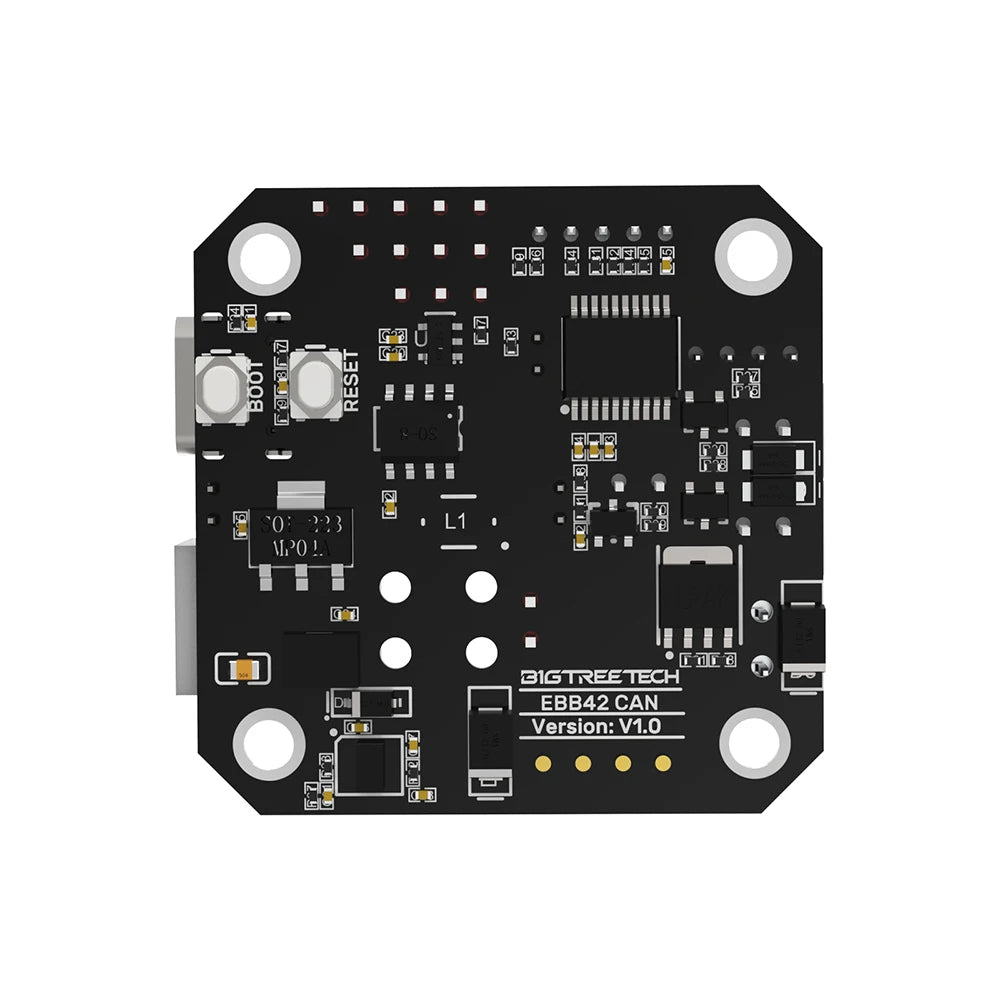

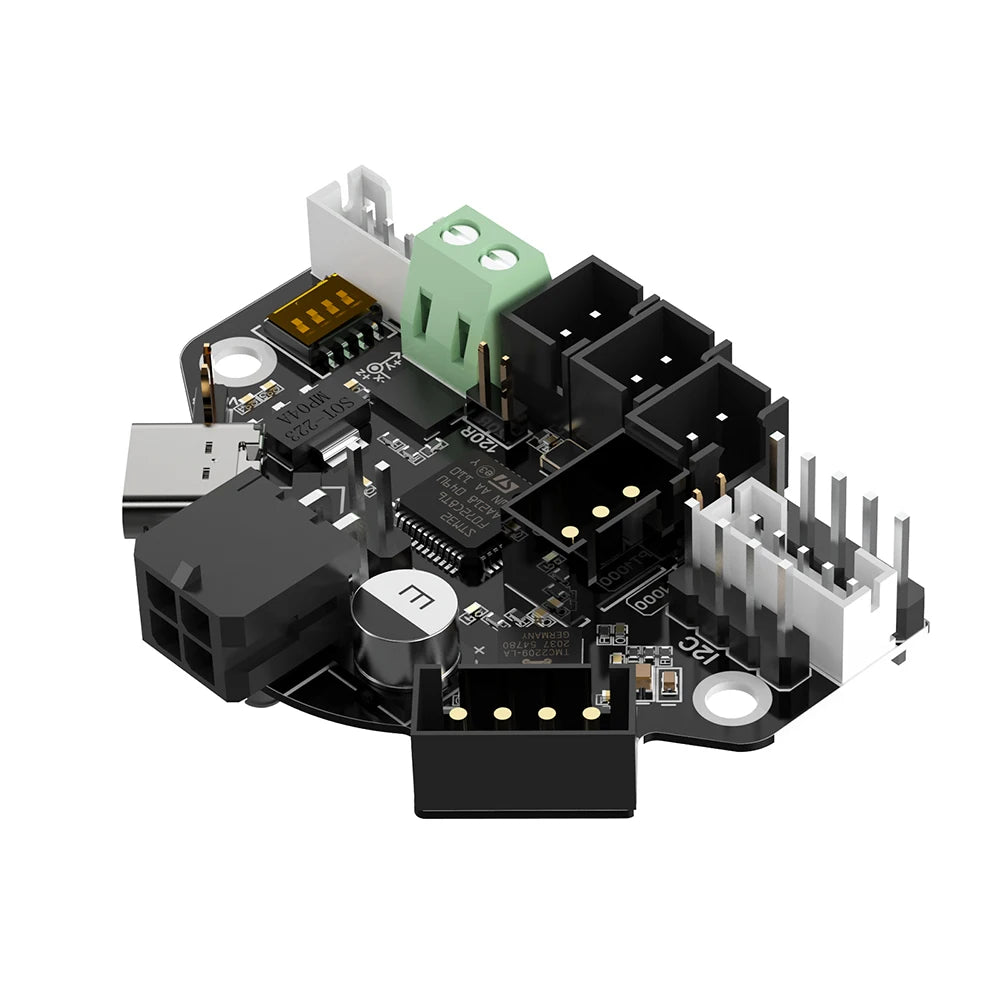

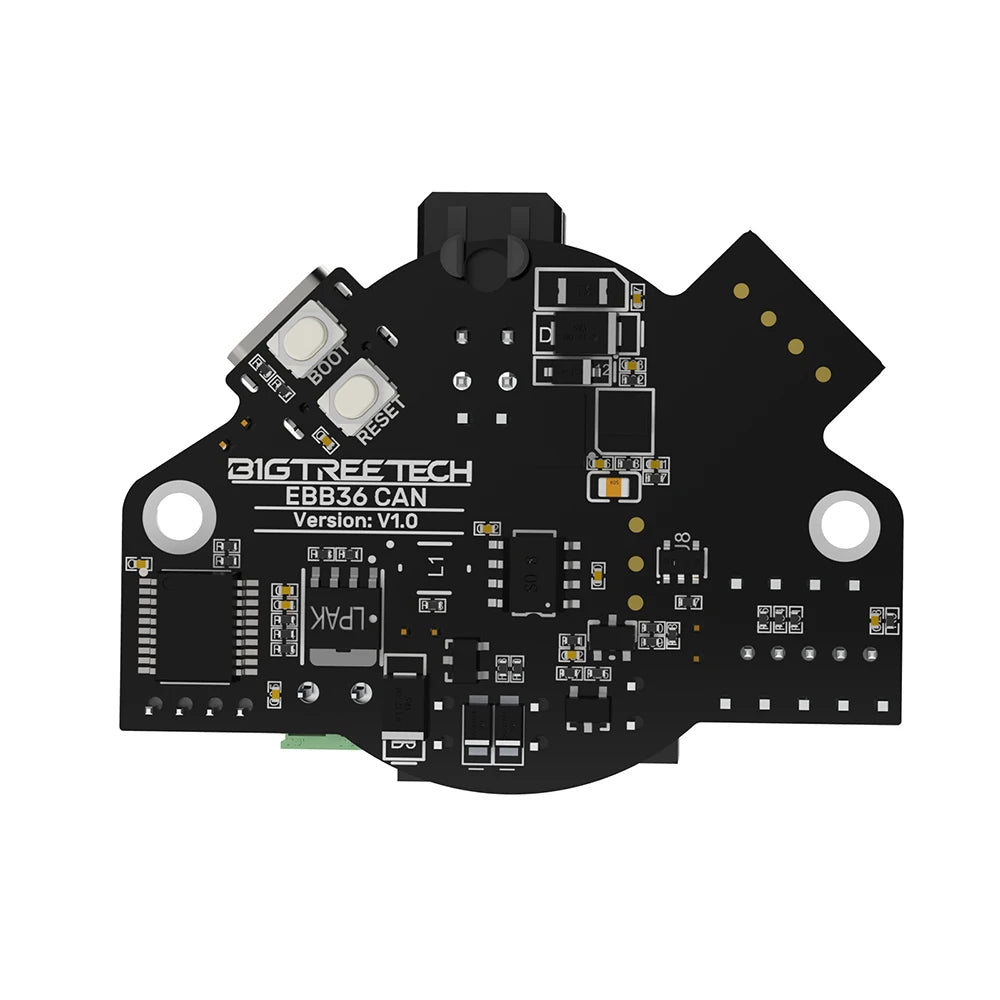

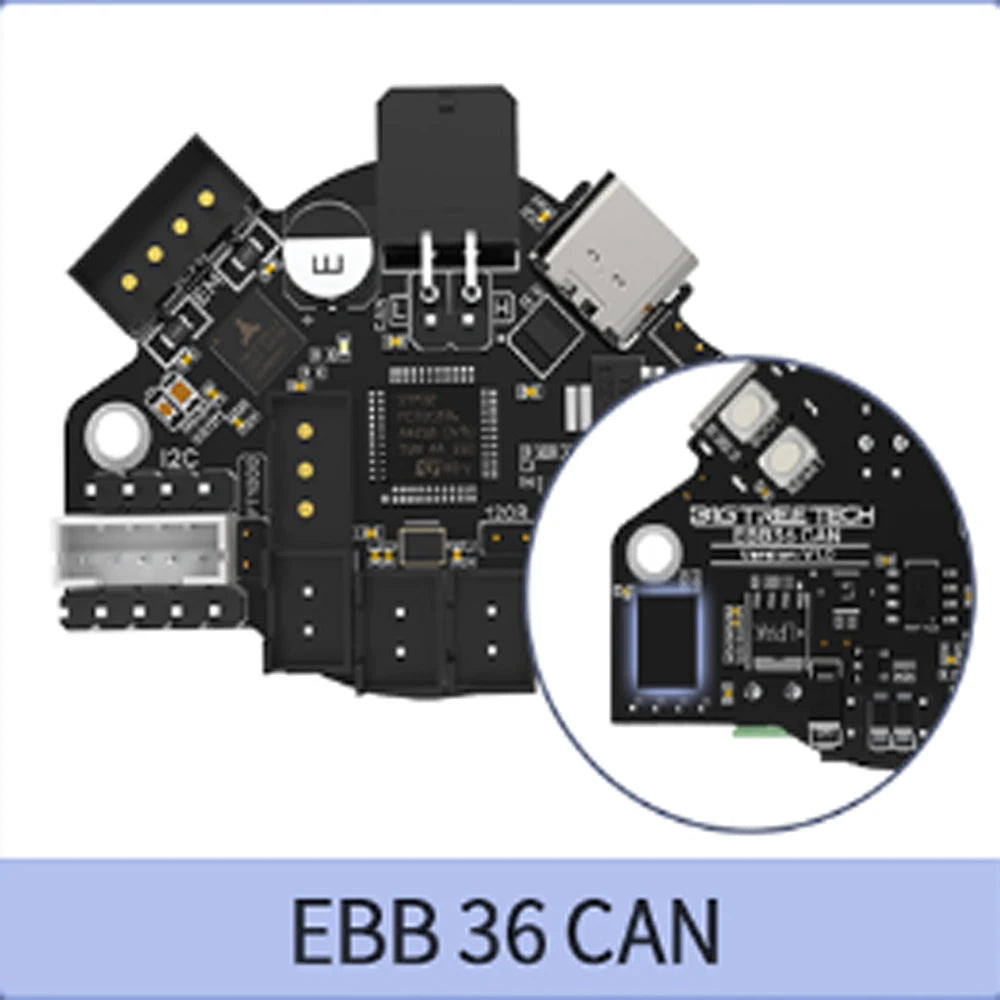

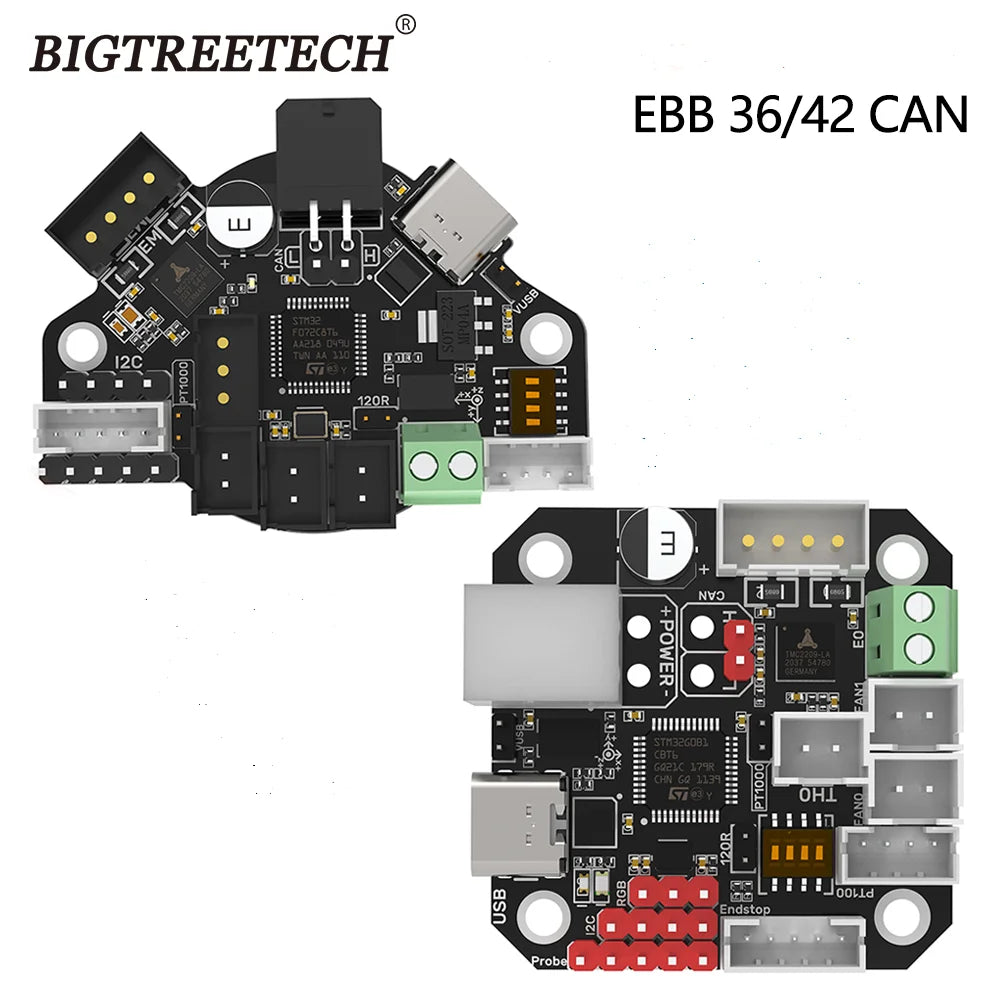

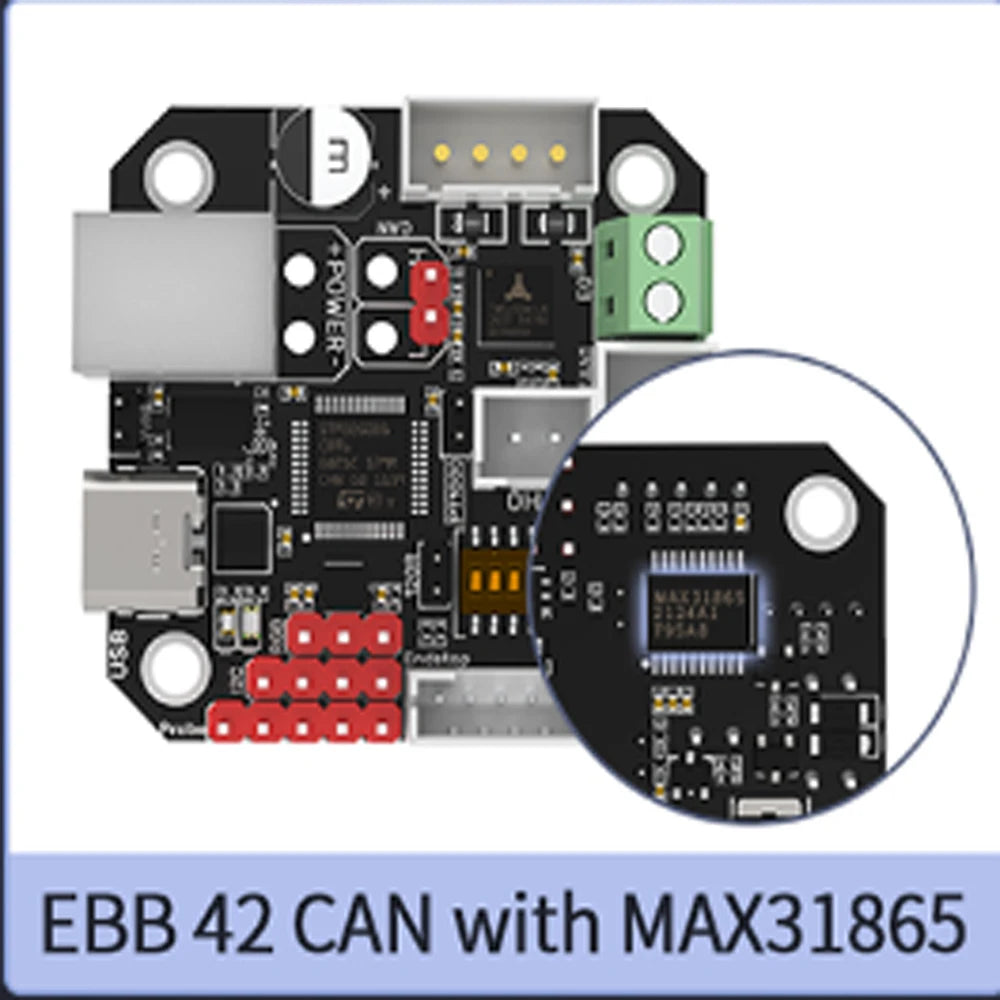

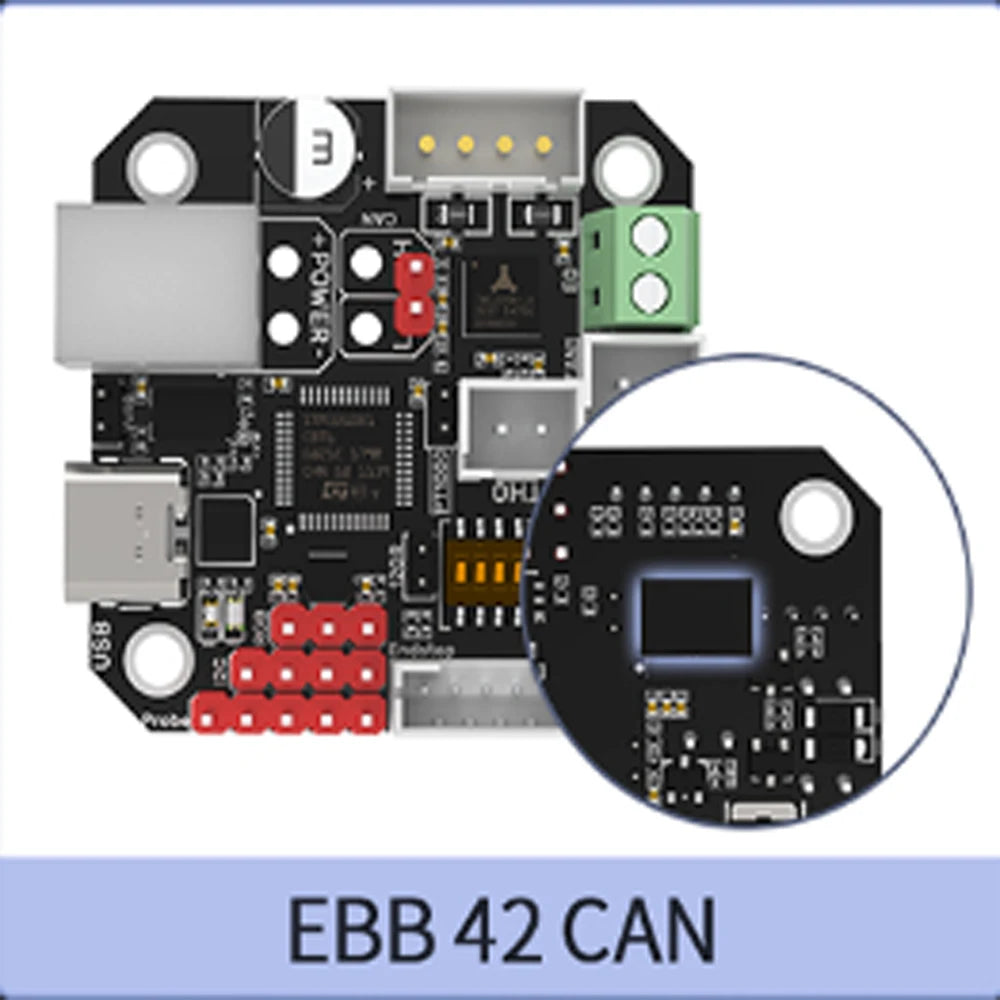

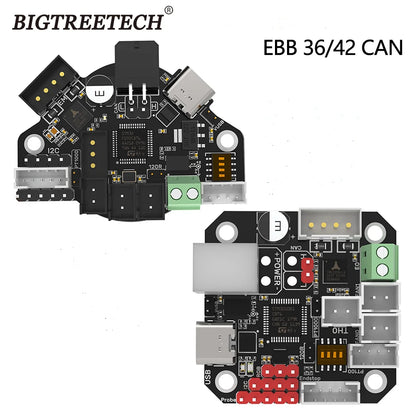

Model Number: EBB 36 CAN/EBB 42 CAN/U2C

Motor Drive: Onboard TMC2209

Onboard Sensor: ADXL345

Origin: Mainland China

Stepper Motor Interface: EM

Temperature Sensor Interface(Optional): 1 channel 100K NTC or PT1000 (TH0), 1 channel PT100/PT1000

USB Communication Interface: USB-Type-C

maximum output current: 5A
